Form, Function, and Formula One

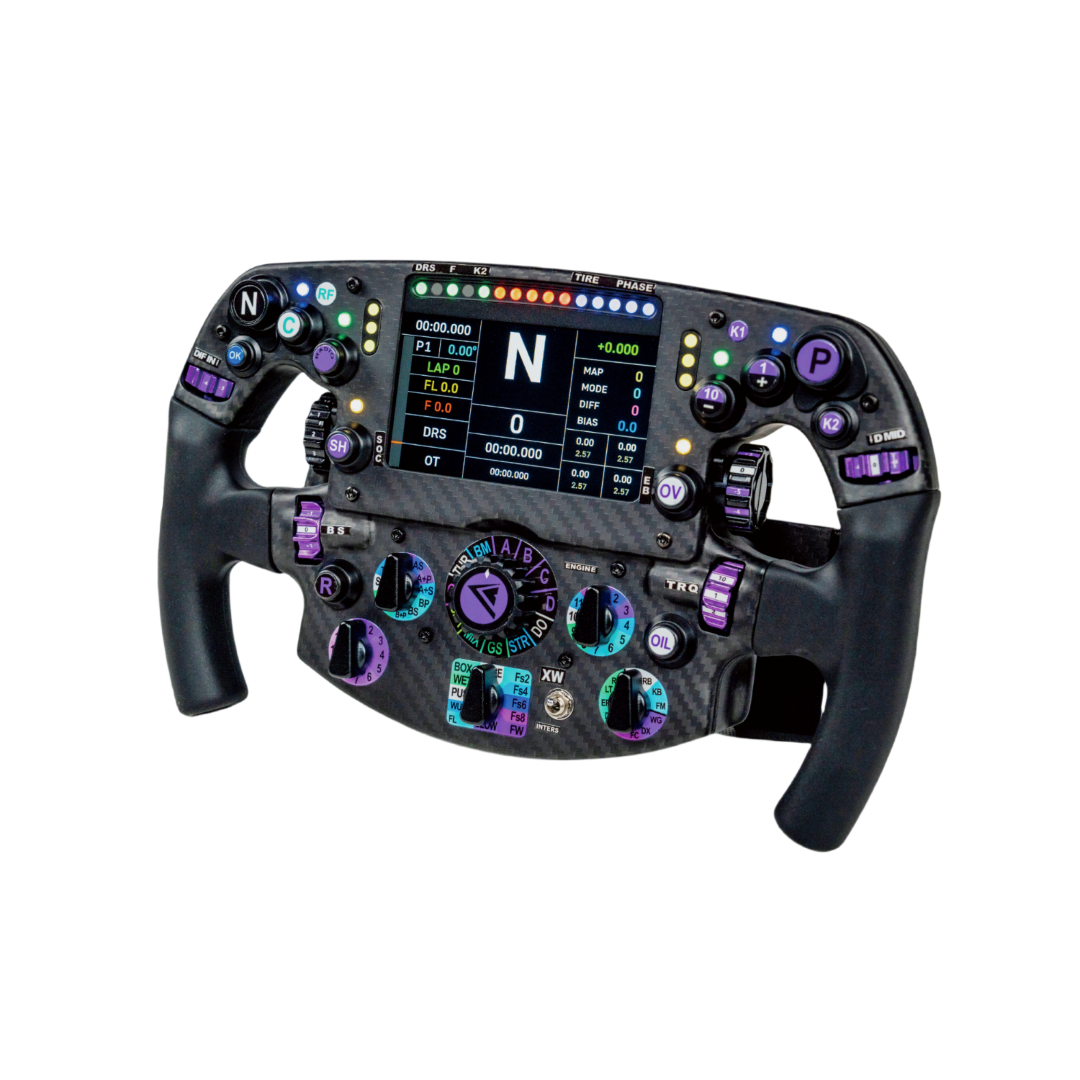

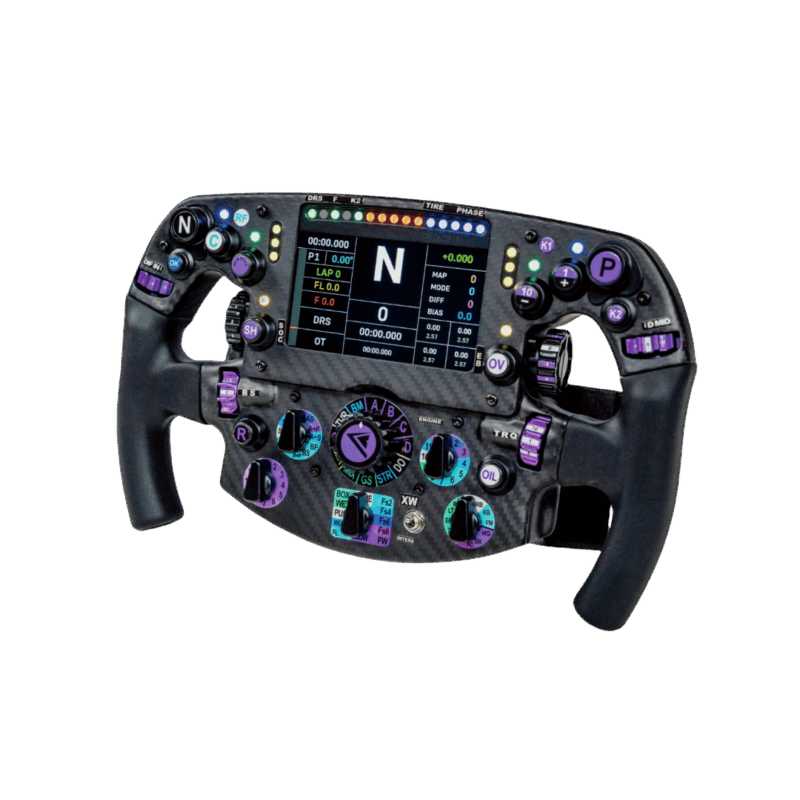

The PW1 faithfully replicates the craftsmanship and interactive layout of an F1 racing steering wheel. With its full carbon fiber construction, high-definition racing display, and the most comprehensive set of control components, it delivers an authentic Formula racing feel. The 280 mm grip diameter enhances precision and control, bringing the true experience of driving a Formula 1 car to your hands.

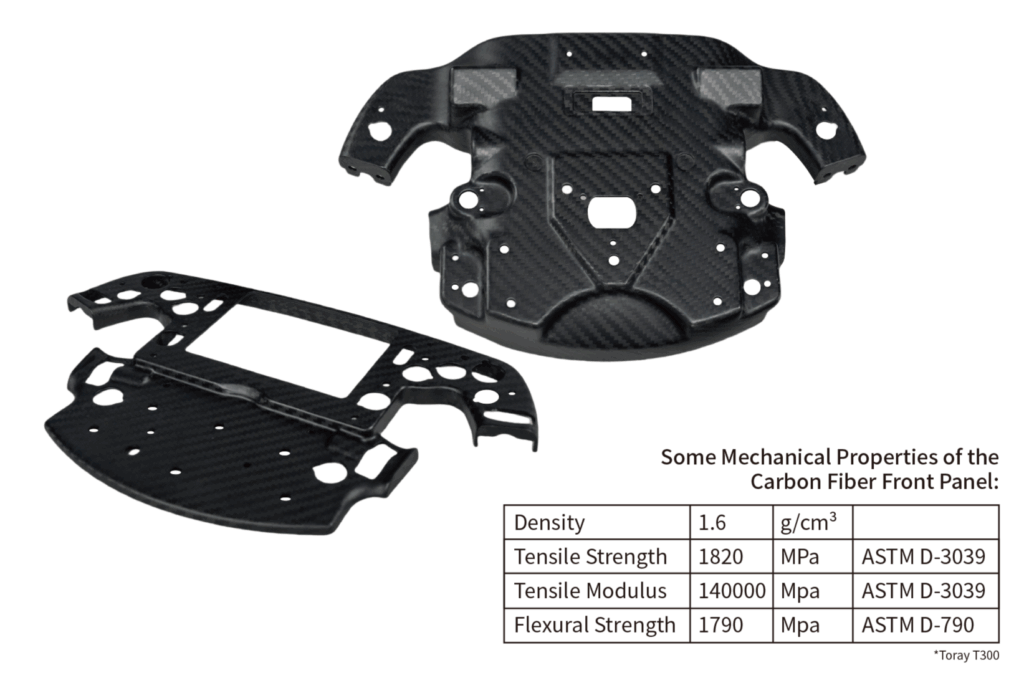

Race-Grade Carbon Fiber
The PW1 features the housing crafted from T300 prepreg carbon fiber, delivering up to 16 times the tensile strength of standard carbon composite injection molding. Using a 10 to 12-layer compression-molded structure—the same process used in Formula-level racing—it achieves exceptional rigidity and ultra-lightweight performance.

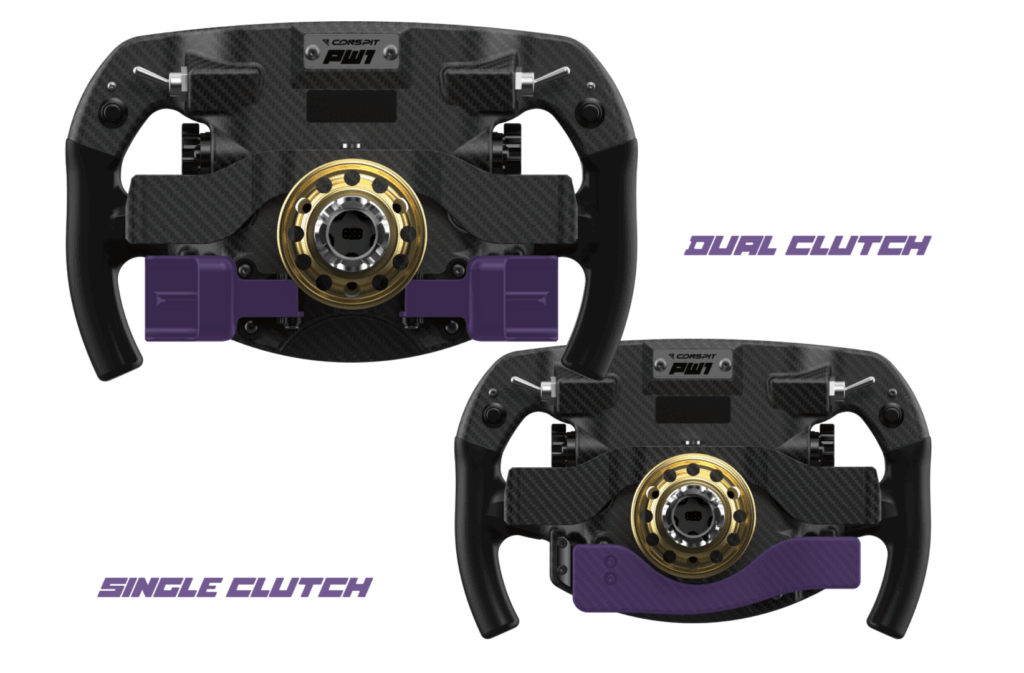

Dual Modes, One Seamless Launch
Equipped with both a standard dual-clutch and a lever-style single-clutch paddle—exclusive to Formula racing—the PW1 lets you switch between clutch modes instantly based on personal preference. With customizable bite point, dual-clutch logic, and independent axle modes via CONSPIT Link 2.0, every race start is smooth, precise, and fully under your control.

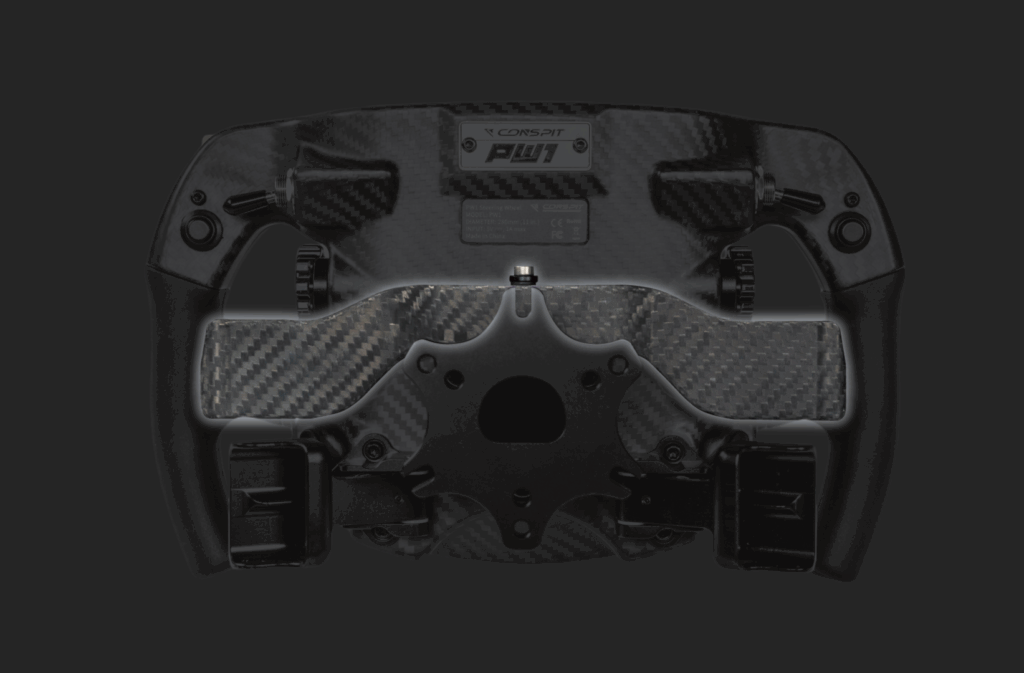

Rocker-type Magnetic Shift Paddles
Crisp, tactile feedback and Formula-grade responsiveness—engineered for precision control. Mirrors the same-side bidirectional shifting used in F1, bringing authentic race mechanics to your hands.

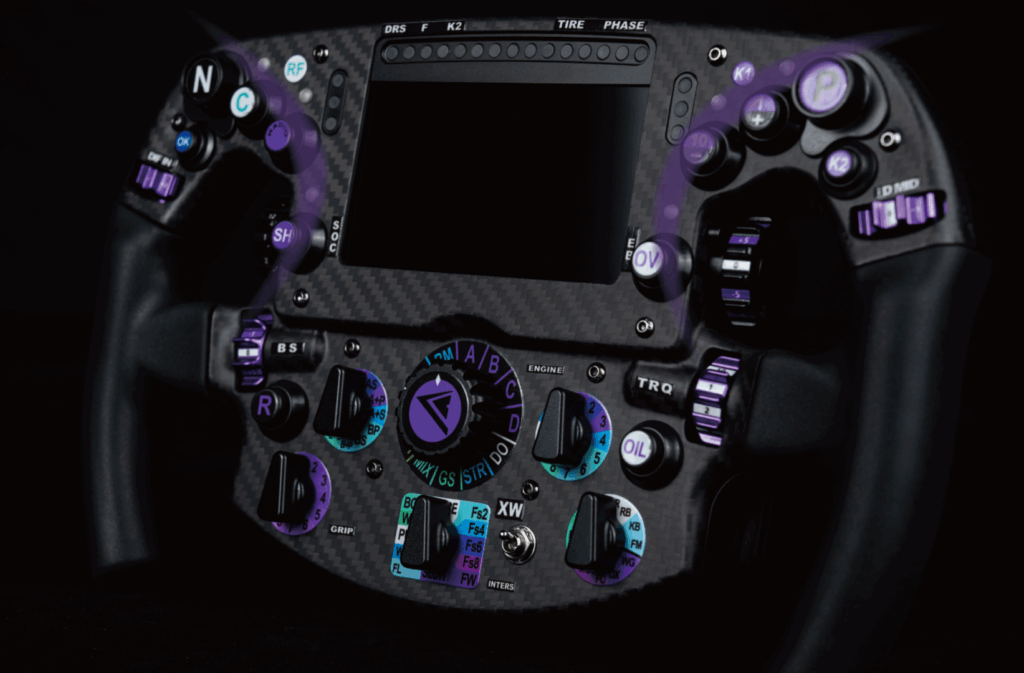

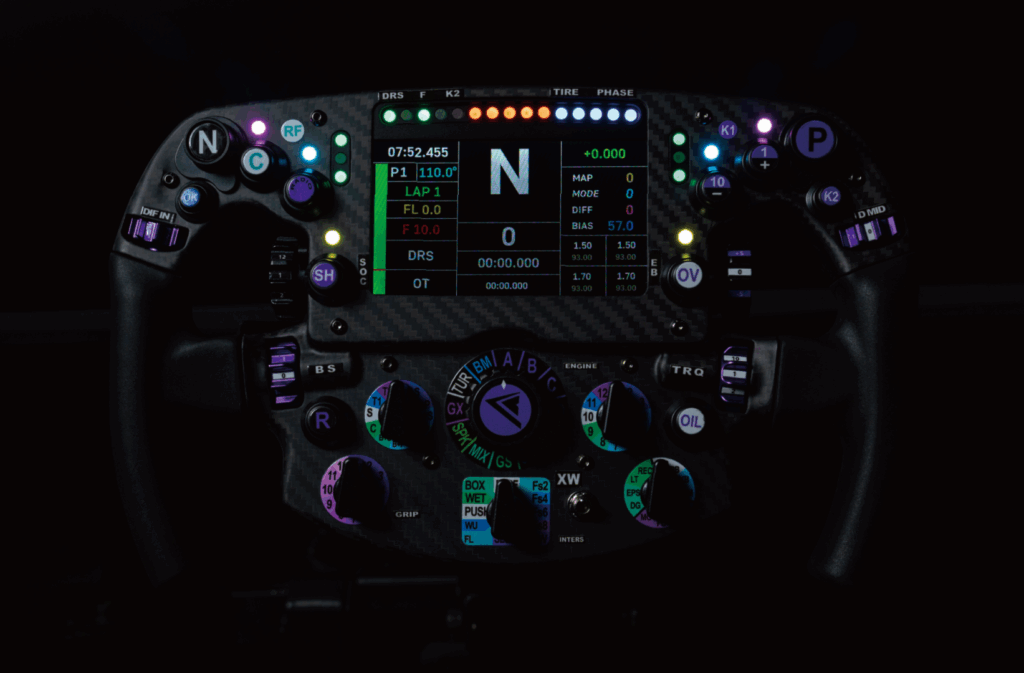

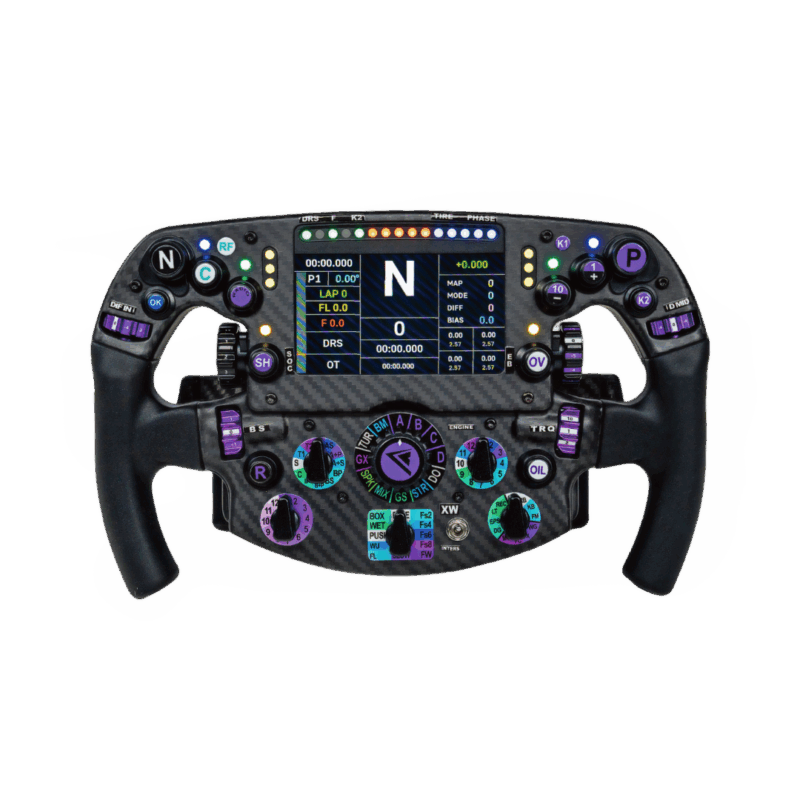

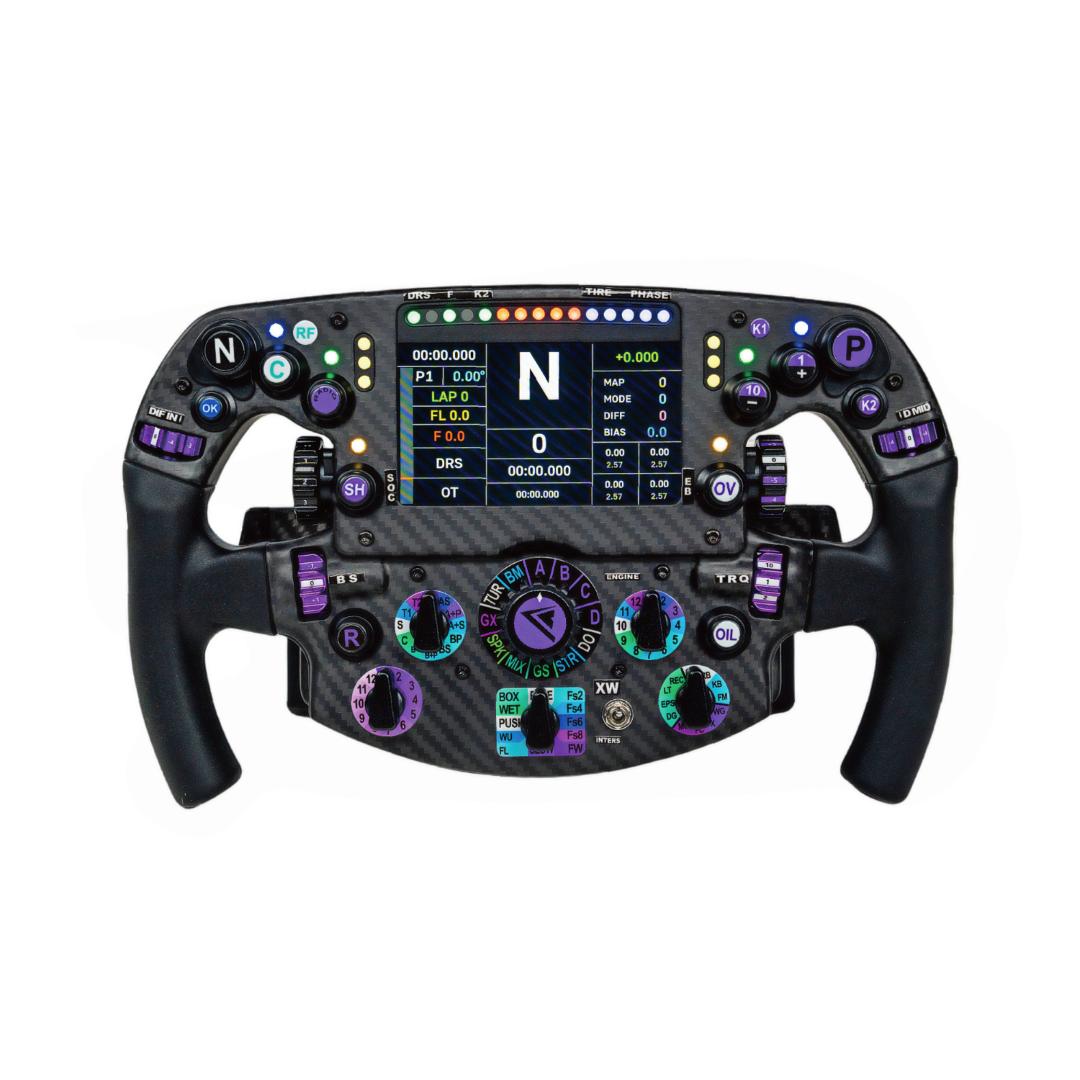

The Formula of Control
With 14 push buttons, 6 encoder dials, 6 rotary knobs, 1 panel toggle switch, and 2 rear toggle switches, the PW1 offers an unmatched array of input options—all within easy reach. This expansive control layout far exceeds standard configurations, enabling users to manage the complex, feature-rich settings of modern and future racing simulators with ease and precision.
Conspit Link 2.0 Advanced Control Features
Quick calibration of paddles, and advanced controls via Conspit Link 2.0:
– Dual-mode Rotary Knobs: Can be set as a rotary switch or encoder.
– Encoders Remap: Positions on the rotary knob shift button mappings for thumb encoders, enabling multiple in-car adjustments without extra encoders.
– Rotary Macro: Lower rotary knob controls upper knob positions, allowing rapid switching between preset vehicle control maps.

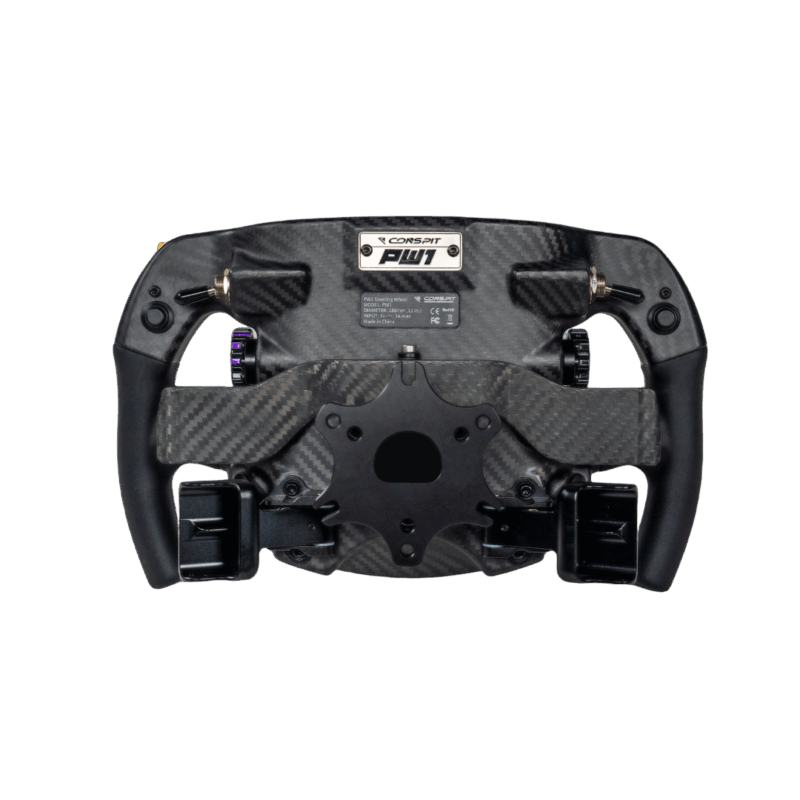

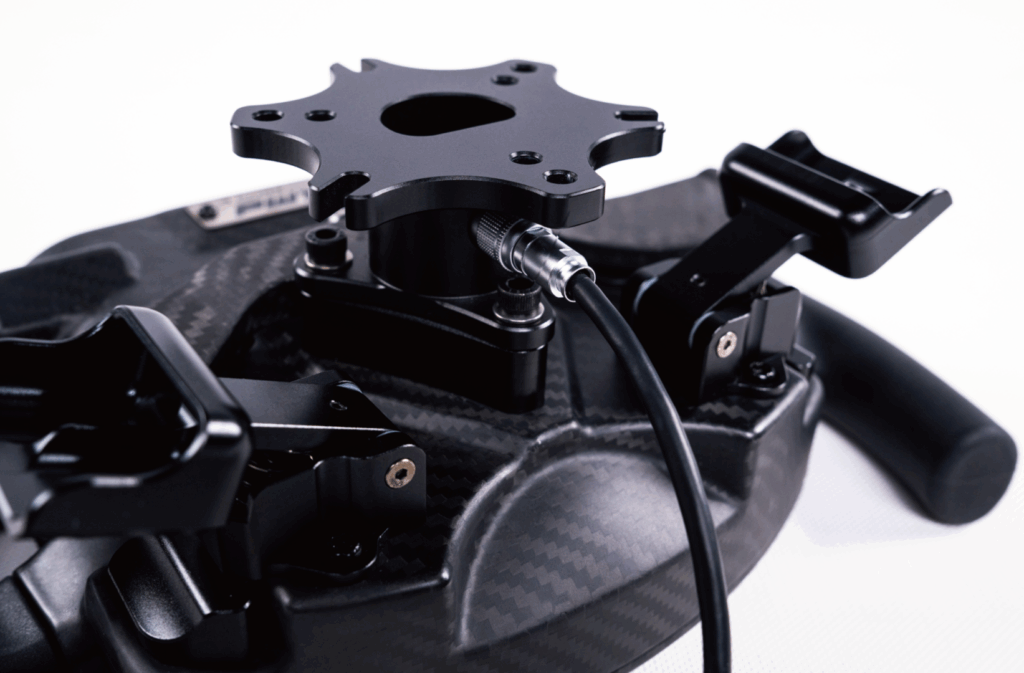

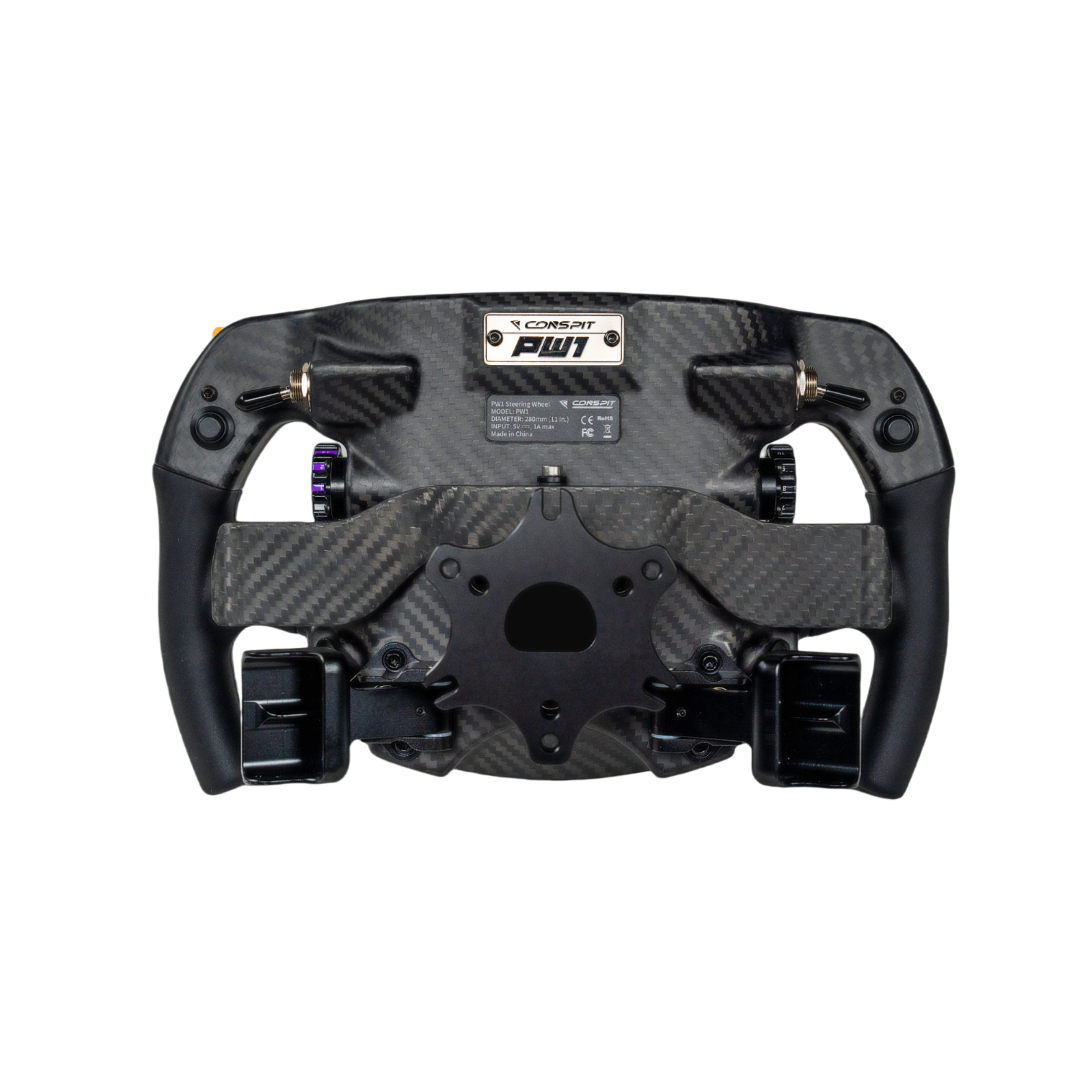

Quick-Con Adapter with Independent USB Connection
– Standard 70mm PCD adapter, ensuring broad compatibility with various options.
– Heavy-duty quick connector ensures stable, reliable connections.
– Comes with a detachable coiled cable featuring a direct USB connection.
CDR Quick Release
The PW1 CDR QR optional add-on, not included, is compatible with the CDR quick release system for direct connection to CONSPIT ARES wheelbase. The CDR Quick Release System is is designed using specifications that are widely adopted in the sim-racing industry, ensuring mechanical compatibility between various wheelbases and steering wheels. It accommodates multiple usage scenarios, allowing for rapid assembly and disassembly as well as effortless steering wheel changes.
CDP Quick Release
The PW1 CDP QR optional add-on, not included, is compatible with the CDP quick release system for direct connection to CONSPIT ARES wheelbase. It features a Formula-inspired CNC-machined 7075 aluminum clasp and ball locking design, with the clasp handling torque transmission and the balls ensuring precise longitudinal positioning. Spring contacts provide EMI-resistant electrical stability, outperforming wireless systems. Optimized contact geometry reduces ball wear, ensuring zero-play durability under extreme loads.
Specifications
Product Name | PW1 |
Main Material | Carbon Fiber, Aluminum Alloy |
Product Dimensions | 280x175x160 mm |
Net Weight | 1240g (Dual-clutch version) (Excluding QR/adapter) |
Dashboard | 4.3″ 800*480 color display |
Indicators | 27 x RGB LEDs |
Buttons | 14 x |
Encoder Wheels | 6 x |
Rotary Switches | 6 x 12-position |
Toggle Switches | 3 x |
Clutch Paddles | Dual-mode modular Hall sensored clutch paddles |
Shift Paddles | Rocker-Type magnetic shifter paddles |
Platform | Windows PC |
Connection | USB direct, CONSPIT CAN |
Software | Conspit Link 2.0 |
